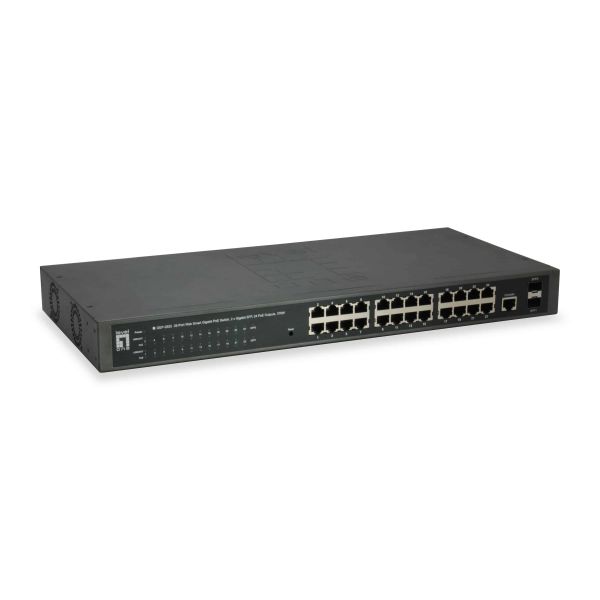

LevelOne GEP-2652 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grijs

LevelOne GEP-2652, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack-montage

Ruim op voorraad

Fabrikant LevelOne
MPN GEP-2652
EAN 4015867207932
€ 420,00 excl. BTW

LevelOne GEP-2652 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grijs

The LevelOne GEP-2652, the latest web smart generation, is equipped with 24 PoE ports and 2 Gigabit SFP ports. It offers powerful Layer2 capabilities, enhanced PoE functionality and a total PoE budget of 370W. The switch also supports advanced IPv6 management, IPv6 security and IPv6 multicast control to accommodate the growth of IPv6 deployment. Moreover, at an exceptional price/performance ratio.

The PoE-enabled GEP-2652 has IEEE 802.3af/at certification, eliminating the challenges associated with standardized devices. It is therefore ideal for companies that want to operate VoIP telephones, wireless access points or network cameras. The GEP-2652 supports up to 30W output power per PoE port, giving you power distribution flexibility for a wide range of PoE PD devices. Adjust your network infrastructure as your business grows and save operating costs with easier management.
  • 24 Gigabit PoE ports and 2 Gigabit SFP slots
  • IEEE 802.3af/at PoE compliant to simplify deployment and installation
  • Total PoE power budget: 370W, up to 30W per port
  • Supports port-based VLAN, IEEE 802.1Q VLAN Tagging and GVRP
  • IEEE 802.1d/w/s Spanning Tree Protocol (STP) and port mirroring
  • Supports IPv4/IPv6 network operation
  • Supports unknown unicast / broadcast / multicast storm control
  • MLD, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, and TFTP Management
  • IP Multicast Filtering through IGMP Snooping V1 / V2 / V3
  • Dynamic ARP Inspection (DAI) protects switches against ARP spoofing

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2
Quality of Service (QoS)
Ja
ARP-inspectie
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
24
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal Gigabit Ethernet (koper)-poorten
24
Aantal moduleslots SPF
2

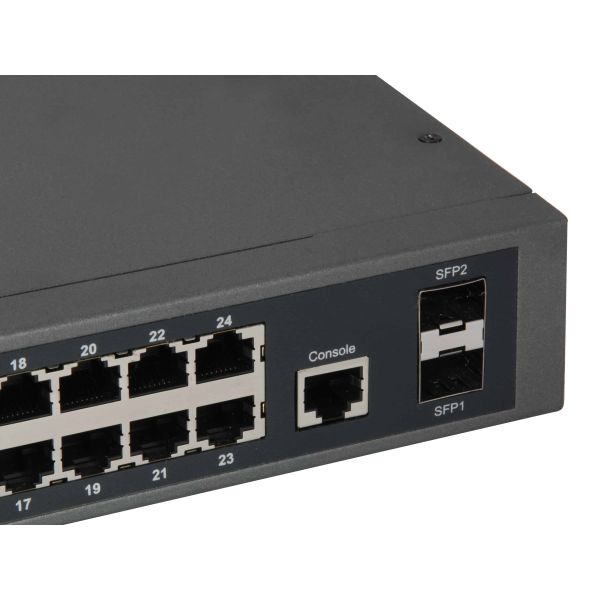

Console port
RJ-45
Netstekker
AC-in-aansluiting

Netwerk

Netwerkstandaard*
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
10G support*
Nee
Port mirroring
Ja
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Rate limiting
Ja
Spanning tree protocol
Ja
Netwerkvirtualisatie-technologieën
Q-in-Q-tunneling
QinQ-implementatie
Selective QinQ
VLAN=ondersteuning
Ja
Virtuele LAN-functies
MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID), Voice VLAN
Aantal VLANs
4000

Data-uitwisseling

Verzending snelheid
38,69 Mpps
MAC-adrestabel*
8000 entries
Store-and-forward
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
9000
Packet buffergeheugen
128 MB

Beveiliging

DHCP-functies
DHCP snooping
Access Control List (ACL)
Ja
IGMP snooping
Ja
IGMP-proxy
Ja
Ondersteunde beveiligingsalgoritmen
SNMPv3
SSH/SSL support
Ja
Authenticatie
Gast-VLAN, Webgebaseerde authenticatie
Wachtwoordbeveiliging
Ja
DoS aanval preventie
Ja
Authenticatie type
RADIUS
Algoritmen wachtrijplanning
Priority queuing (PQ), Weighted Round Robin (WRR)

Multicast-functies

Multicast-ondersteuning
Ja
Multicast Listener Discovery (MLD) snooping
v1/v2

Protocollen

GARP VLAN Registratieprotocol (GVRP)
Ja
IPv4- & IPv6-functies
IPv6 Telnet

Design

Rack-montage*
Ja
Kleur van het product
Grijs
Materiaal behuizing
Metaal
Reset button
Ja
LED-indicatoren

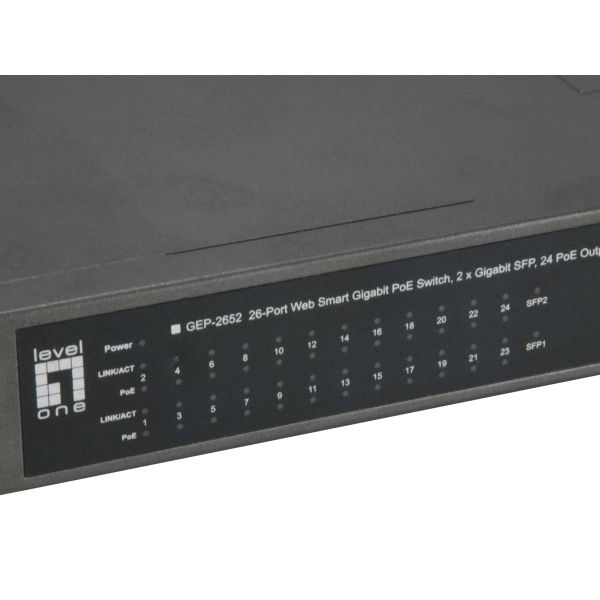

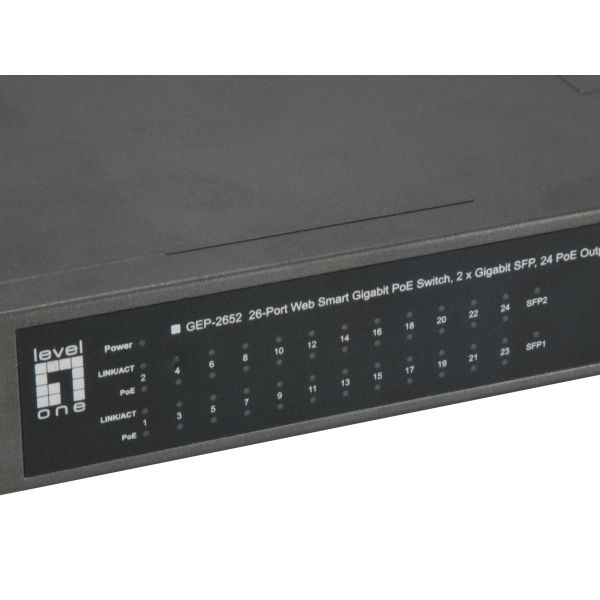

Link, Power over Ethernet (PoE), Stroom
Land van herkomst
China
Certificering
CE

Prestatie

Intern geheugen
8 MB
Upgraden van firmware mogelijk
Ja
Telnet
Ja

Energie

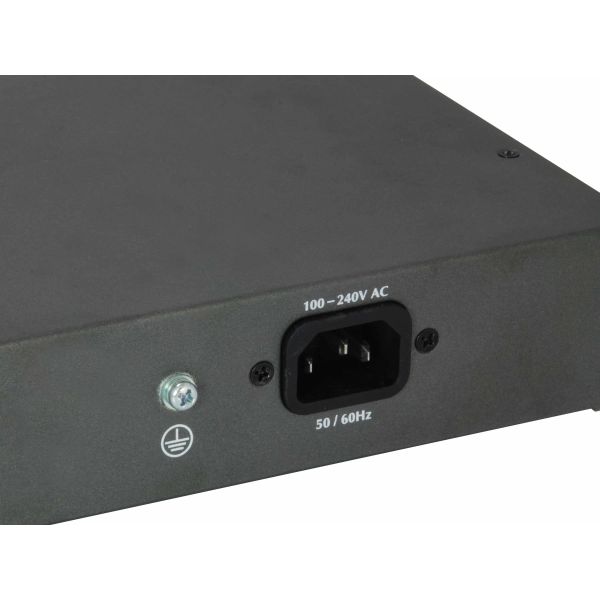

AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroom
6.5 A
Vermogensverbruik (max)
435 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Hoeveelheid Power over Ethernet (PoE) ports
24
Vermogen per poort Power over Ethernet (PoE)
30 W
Totaal Power over Ethernet (PoE)-budget
370 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 45 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 90 procent

Gewicht en omvang

Breedte
440 mm
Diepte
208 mm
Hoogte
44 mm
Gewicht
3,87 kg

Verpakking

Meegeleverde kabels
AC
Snelstartgids
Ja
Type verpakking
Doos
Rekbevestigingspakket
Ja
Rubberen voetjes
Ja
Ondersteunings-cd
Ja
Breedte verpakking
555 mm
Diepte verpakking
295 mm
Hoogte verpakking
88 mm
Gewicht verpakking
4,2 kg

Duurzaamheid

Duurzaamheidscertificaten
RoHS

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
