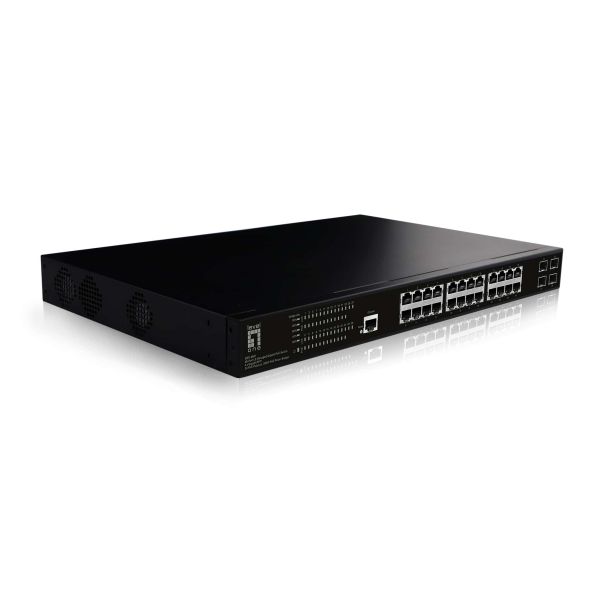

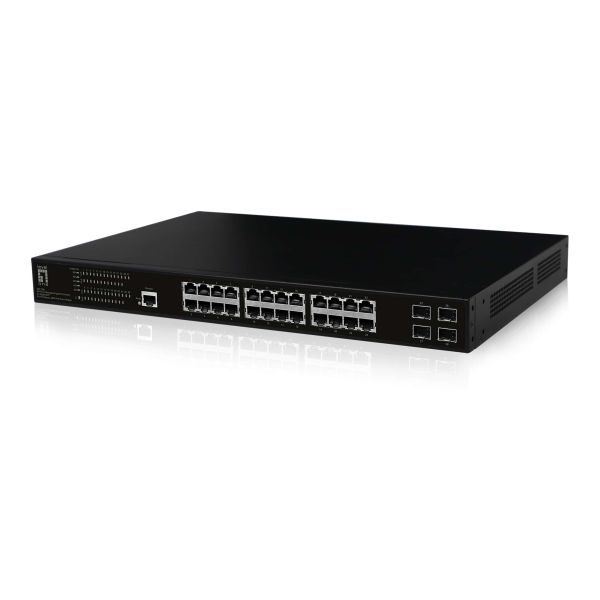

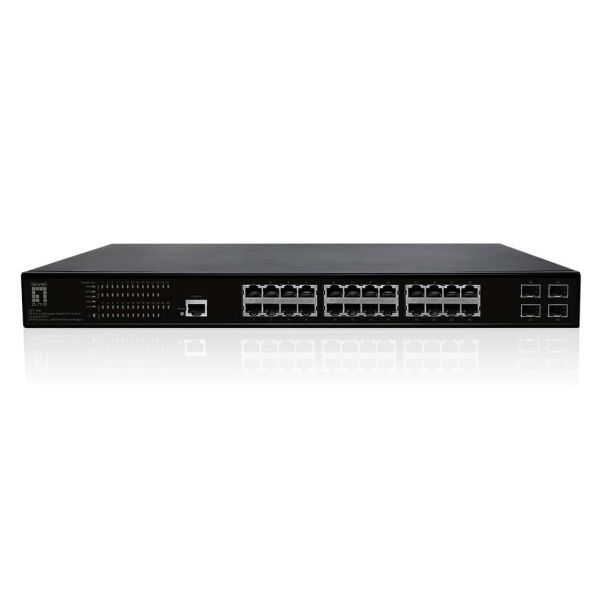

LevelOne GEP-2861 netwerk-switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Zwart

LevelOne GEP-2861, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack-montage, 1U

Ruim op voorraad

Fabrikant LevelOne
MPN GEP-2861
EAN 4015867227848
€ 564,00 excl. BTW

LevelOne GEP-2861 netwerk-switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Zwart

The levelone GEP-2861 is a 28-Port L2 Managed Gigabit PoE Switch that supports up to 24*10/100/1000M PoE ports and 4*1000M SFP ports. 24*10/100/1000M ports support PoE+ and total up to 390W PoE power budget, conforming to IEEE 802.3af/at standard, single port PoE power up to 30W. supports L2 management, such as QoS, VLAN, MSTP, Multi-brocast, ports management and PoE management. It has a high anti-interference ability, the product supports 6KV surge protection, and 6KV contact / 8KV air ESD protection. supports 19" rack mount and desktop installation, reliable and durable, and can be used in security network video monitoring, network engineering and other occasions. GEP-2861 provides high HW performance and environment flexibility for SMBs and Enterprises. GEP-2861 is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.
  • 24 Gigabit PoE+ ports and 4 Gigabit SFP ports
  • Total PoE power budget: 390W, up to 30W per port
  • IEEE 802.3af/at PoE compliant to simplify deployment and installation
  • Supports working temperature -10℃~50℃
  • 6KV surge protection, 6KV contact / 8KV air ESD protection

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2
Quality of Service (QoS)
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
24
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal Gigabit Ethernet (koper)-poorten
24
Aantal moduleslots SPF
4
Console port
RJ-45
Netstekker
AC-in-aansluiting

Netwerk

Netwerkstandaard*
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
Nee
Koperen ethernetbekabelingstechnologie
10BASE-T, 1000BASE-T, 100BASE-TX
Port mirroring
Ja
Broadcast stormbeheer
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
VLAN=ondersteuning
Ja

Data-uitwisseling

Switchingcapaciteit*
56 Gbit/s
MAC-adrestabel*
16000 entries
Jumbo Frames ondersteuning
Ja
Jumbo frames
10000
Packet buffergeheugen
4 MB

Beveiliging

Access Control List (ACL)
Ja
BPDU filtering / bescherming
Ja
Wachtwoordbeveiliging
Ja

Multicast-functies

Multicast-ondersteuning
Ja

Design

Rack-montage*
Ja
Stapelbaar*
Nee
Vormfactor
1U
Kleur van het product
Zwart
LED-indicatoren
Activiteit, Link, Power over Ethernet (PoE), Snelheid, Systeem

Design

Land van herkomst
China
Certificering
CE, RoHS

Prestatie

Upgraden van firmware mogelijk
Ja
Fanloos
Nee

Energie

Stroombron*
AC
Vermogenstoevoer inclusief*
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Vermogen per poort Power over Ethernet (PoE)
30 W
Totaal Power over Ethernet (PoE)-budget
390 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-10 - 50 °C
Temperatuur bij opslag
-40 - 85 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Luchtvochtigheid bij opslag
0 - 95 procent

Gewicht en omvang

Breedte
442 mm
Diepte
285 mm
Hoogte
44 mm
Gewicht
4 kg

Verpakking

Meegeleverde kabels
AC
Snelstartgids
Ja
Type verpakking
Doos
Rekbevestigingspakket
Ja
Breedte verpakking
395 mm
Diepte verpakking
90 mm
Hoogte verpakking
530 mm
Gewicht verpakking
4,8 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
