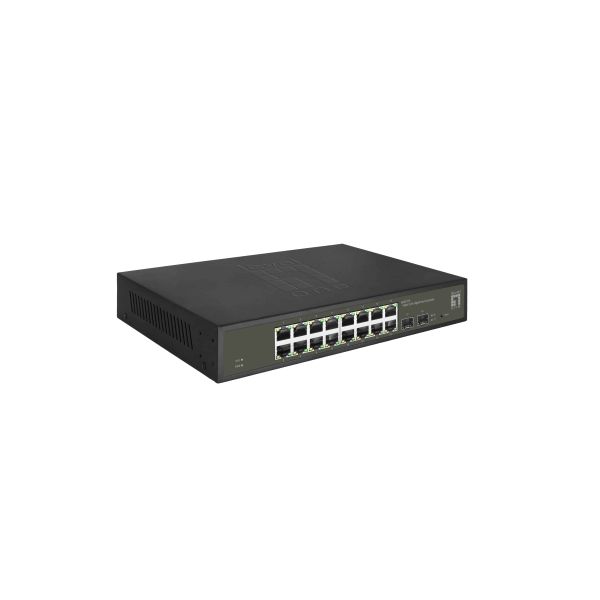

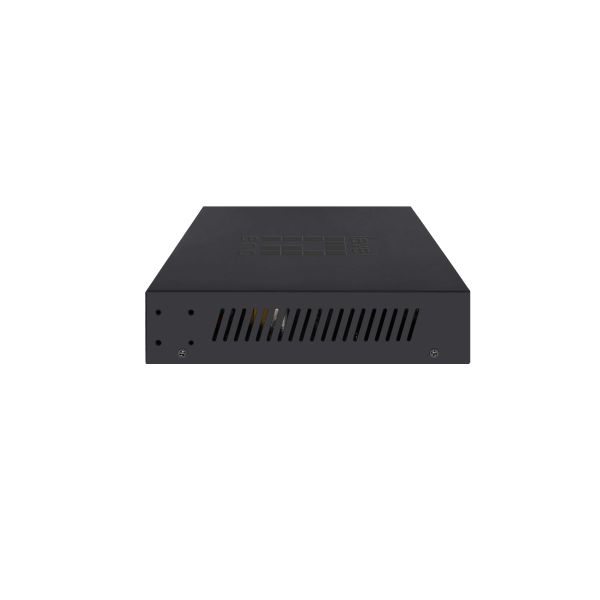

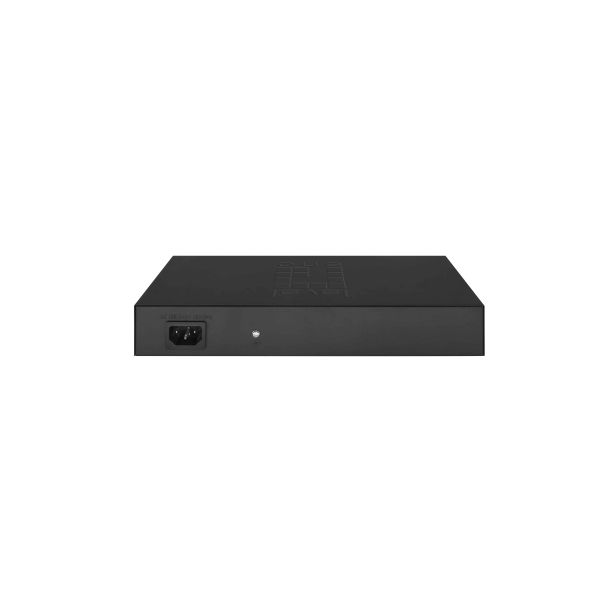

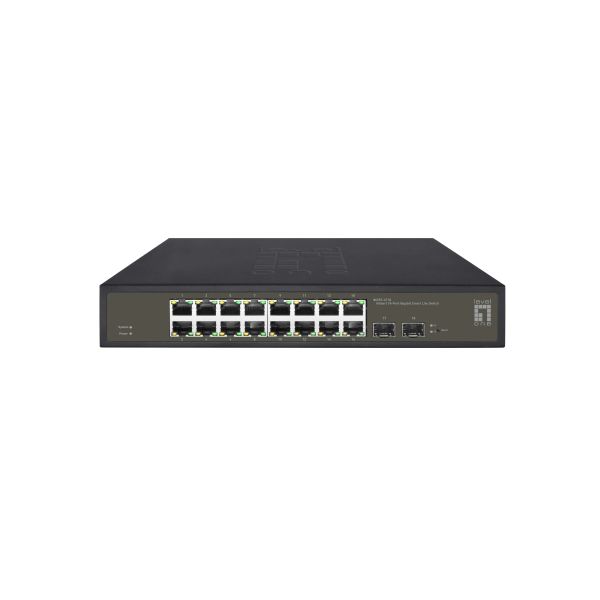

LevelOne GES-2118 netwerk-switch Managed L2 Gigabit Ethernet (10/100/1000) Zwart

LevelOne GES-2118, Managed, L2, Gigabit Ethernet (10/100/1000), Rack-montage

Ruim op voorraad

Fabrikant LevelOne
MPN GES-2118
EAN 4015867229262
€ 117,00 excl. BTW

LevelOne GES-2118 netwerk-switch Managed L2 Gigabit Ethernet (10/100/1000) Zwart

The LevelOne GES-2118 Hilbert gigabit smart lite switch is a next-generation Ethernet Switch offering powerful better functionality and usability that delivers the cost-effectively business and transports Ethernet services via fiber or copper connections. GES-2118 delivers 16 (10M/100M/1G) RJ45 ports and 2 Gigabit SFP ports. can be matched with the latest LevelOne IP Locator, the software is the easiest to use switch discovery tool, it can search all Hilbert series switches, instantly know the forgotten IP and other info. Compatible with mainstream Windows and Mac operating systems.

The LevelOne GES-2118 provides high HW performance and environment flexibility for Enterprises. GES-2118 is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.
  • 16 Gigabit Ethernet ports and 2 Gigabit SFP slots
  • Supports 8K MAC address auto-learning and auto-aging
  • 9K jumbo frames to increase data transfer rates
  • IP Multicast Filtering through IGMP Snooping V1 / V2
  • 802.1Q tag-based VLAN allows network segmentation to enhance performance and security
  • IEEE 802.1p QoS with 4 priority queues
  • Supports unknown unicast / broadcast / multicast storm control
  • Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
  • 4KV surge protection, 6KV contact / 8KV air ESD protection
  • Web-based and smart lite Management
  • Supports LevelOne IP Locator for easier IP management

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
16
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal Gigabit Ethernet (koper)-poorten
16
Aantal moduleslots SPF
2

Netwerk

Netwerkstandaard*
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
Nee
Port mirroring
Ja
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Rate limiting
Ja
MAC-adres zelflerende functie
Ja
MAC-adres zelfverouderende functie
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Tagged VLAN
Aantal VLANs
32

Data-uitwisseling

Switchingcapaciteit*
36 Gbit/s
MAC-adrestabel*
8000 entries
Aantal wachtrijen
4
Jumbo Frames ondersteuning
Ja
Jumbo frames
9000
Packet buffergeheugen
4,1 MB

Beveiliging

IGMP snooping
Ja

Multicast-functies

Multicast-ondersteuning
Ja

Design

Rack-montage*
Ja
Kleur van het product
Zwart
LED-indicatoren
Activiteit, Link, Stroom
Land van herkomst
China
Certificering
UKCA, FCC Class A

Prestatie

Flash memory
2 MB
Fanloos
Ja
Mean time between failures (MTBF)
43800 uur

Technische details

Aantal dozen per pallet (lucht)
12 stuk(s)

Technische details

Pallet brutolengte
80 cm
Pallet brutobreedte
120 cm
Pallethoogte (lucht)
182,4 cm

Energie

Stroombron*
AC
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Vermogensverbruik (max)
15 W
Spanningsbeveiliging
Ja
Overspanningsbeveiliging in voltage
8 kV

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 45 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent
Warmtedissipatie
51,18 BTU/h

Gewicht en omvang

Breedte
271 mm
Diepte
181,5 mm
Hoogte
44,5 mm
Gewicht
1,08 kg

Verpakking

Meegeleverde kabels
AC
Snelstartgids
Ja
Type verpakking
Doos
Rekbevestigingspakket
Ja
Breedte verpakking
350 mm
Diepte verpakking
267 mm
Hoogte verpakking
89 mm
Gewicht verpakking
1,68 kg

Duurzaamheid

Naleving van duurzaamheid
Ja
Duurzaamheidscertificaten
CE, RoHS

Logistieke gegevens

Netto gewicht kartonnen doos
1 kg
(Buitenste) hoofdverpakking breedte
480 mm
(Buitenste) hoofdverpakking lengte
370 mm
(Buitenste) hoofdverpakking hoogte
560 mm
(Buitenste) hoofdverpakking brutogewicht
17,8 kg
Hoeveelheid per (buitenste) hoofdverpakking
10 stuk(s)
