LevelOne IGP-0432 netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

LevelOne IGP-0432, Unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)

Nog slechts 5 beschikbaar

Fabrikant LevelOne
MPN IGP-0432
EAN 4015867228180
€ 99,00 excl. BTW

LevelOne IGP-0432 netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

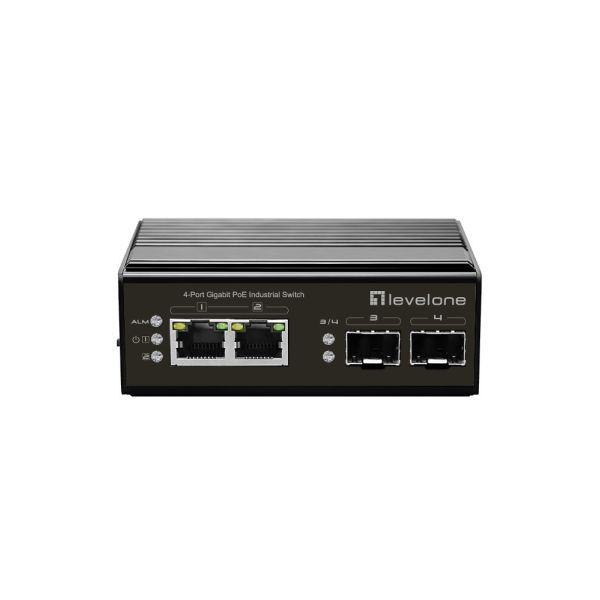

LevelOne IGP-0432 Industry Ethernet Switch provides 2 PoE ports 10/100/1000Base plus 2 port Gigabit SFP to enable high speed network at mission-critical environment. With the industrial standard DIN-rail mount; this switch can be easily installed in the cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers. This switch is Power Sourcing Equipment (PSE), and it is fully complied with IEEE 802.3at/af PoE standard at maximum 30W power budget per port. It helps to save infrastructure wiring costs dramatically by eliminating electric wiring and less UPS needed. Also, it is compatible with IEEE802.3af standard PD devices.
  • 10/100/1000Mbps wire speed transmission and reception
  • IEEE 802.3af/at/bt PoE compliant to simplify deployment and installation
  • 6KV surge protection level on each port
  • 40°C to 75°C operating temperature range
  • Supports DDMI SFP transceiver
  • ESD and surge protection
  • Supports DIN-rail installation

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
2
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal Gigabit Ethernet (koper)-poorten
2
Aantal moduleslots SPF
2

Netwerk

Netwerkstandaard*
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
Nee
Ethernet LAN, data-overdrachtsnelheden
1000 Mbit/s

Data-uitwisseling

Switchingcapaciteit*
8 Gbit/s
MAC-adrestabel*
8000 entries
Packet buffergeheugen
5,95 MB

Design

Rack-montage*
Nee
Stapelbaar*
Nee
Kleur van het product
Zwart
LED-indicatoren
Activiteit, Alarm
Land van herkomst
China

Prestatie

Fanloos
Ja

Technische details

Pallet nettohoogte
152,5 cm
Pallet nettodiepte
80 cm
Pallet nettobreedte
120 cm

Energie

Stroombron*
DC
DC voltage input
48 - 57 V
Stroomverbruik (typisch)
5 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Vermogen per poort Power over Ethernet (PoE)
30 W
Totaal Power over Ethernet (PoE)-budget
60 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 75 °C
Temperatuur bij opslag
-40 - 85 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Luchtvochtigheid bij opslag
0 - 95 procent

Gewicht en omvang

Breedte
65 mm
Diepte
35 mm
Hoogte
101 mm
Gewicht
300 g

Verpakking

Snelstartgids
Ja
Type verpakking
Doos
Breedte verpakking
110 mm
Diepte verpakking
62 mm
Hoogte verpakking
130 mm
Gewicht verpakking
350 g
