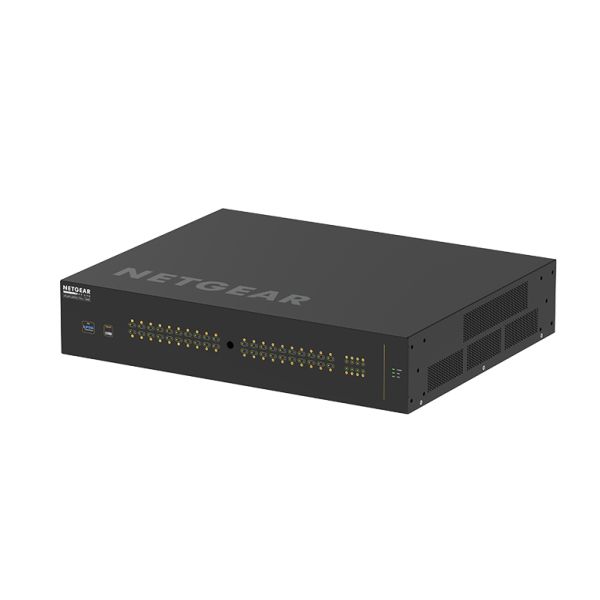

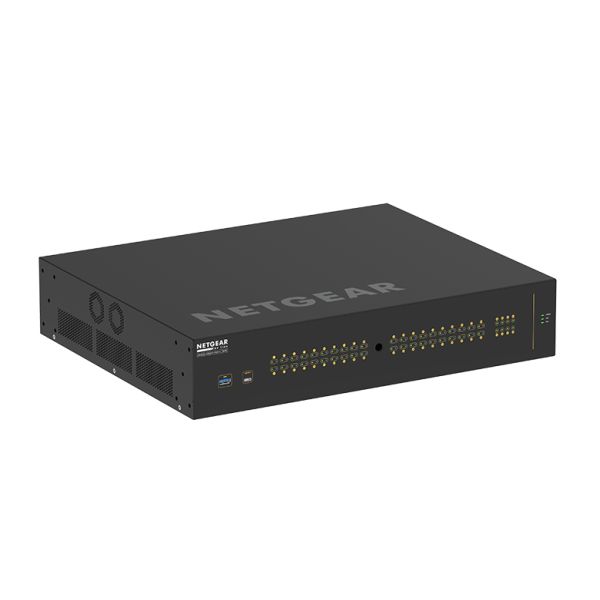

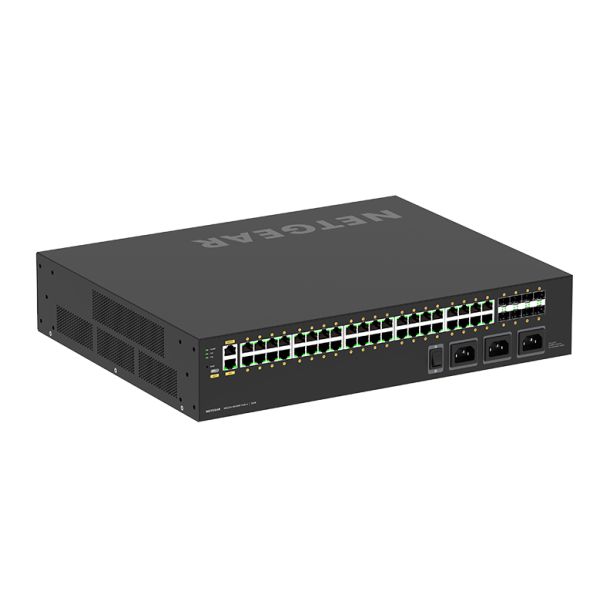

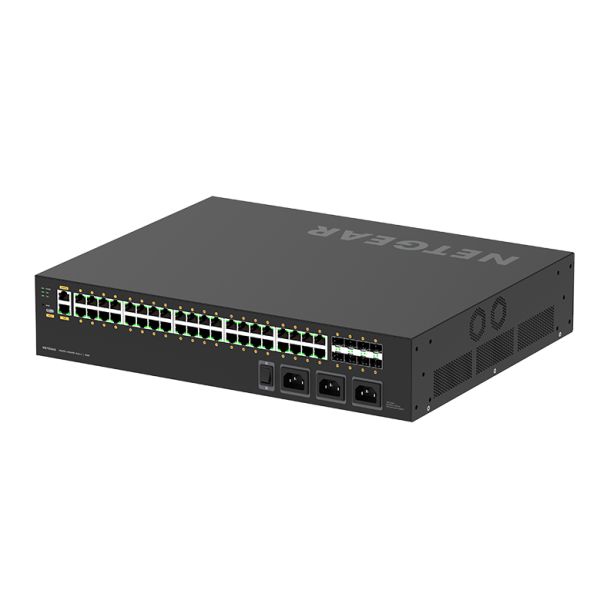

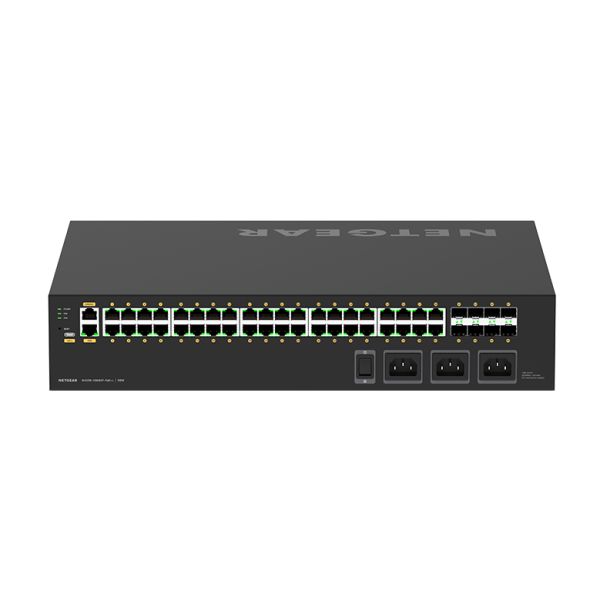

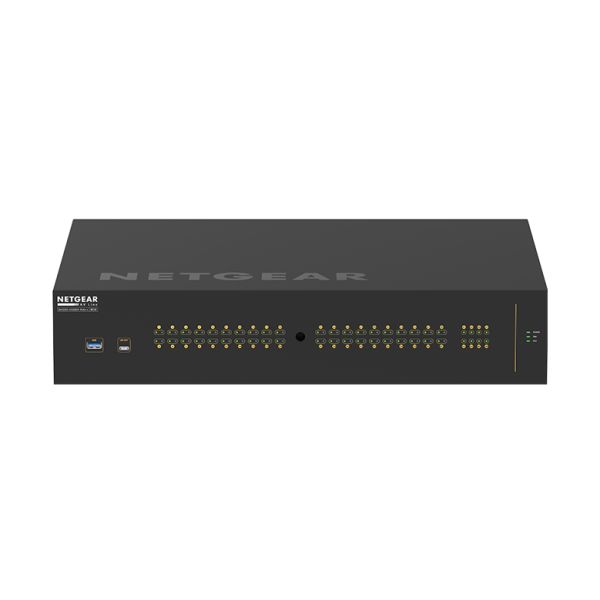

NETGEAR M4250-40G8XF-PoE++ Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 2U Zwart

NETGEAR M4250-40G8XF-PoE++, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack-montage, 2U

Nog 15 beschikbaar

Fabrikant Netgear
MPN GSM4248UX-100EUS
EAN 0606449151763
€ 6.377,00 excl. BTW

NETGEAR M4250-40G8XF-PoE++ Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 2U Zwart

Pre-configured for out-of-the-box use
NETGEAR IGMP Plus™ enables instant multicast functionality for most AV over IP installations

Dedicated AV web-based GUI interface
Unique interface designed for the AV professional with color-coded, port-based profiles

Profiles for common audio protocols
Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate license

Video profiles built-in
Special profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as needed

Unique Automatic Configuration
Auto-trunk and auto-lag functionality automatically configures other M4250 switches for use in star topology.

Easier configuration with new AV GUI
The AV-oriented, web-based GUI permits factory or user-specified profiles to be assigned to individual ports as needed.

Use in noise-sensitive environments
Adjustable fans can be turned off if certain conditions are met. Even the default Quiet mode is quieter than most other switches.

Get up and running fast with little engineering time required
Our NETGEAR IGMP PlusTM feature is set from the factory to ensure out-of-the-box functionality for most AV over IP installations

Multiple mounting options provide ultimate flexibility
Threaded mounting holes sized to industry standards are built into the chassis for mounting behind a display or clamped to a truss.

M4250 AV Line Switches
An entirely new series of switches developed and engineered for the growing AV over IP market.
  • Primary Port Speed : 1 Gigabit
  • Number of Ports : 48 (40x 1G PoE++, 8x SFP+)
  • PoE Ports / Budget : 40 PoE++ (90W/port), 2,880W Budget

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2/L3

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
40
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF+
8
Aantal USB 2.0-poorten
1

Netwerk

Netwerkstandaard*
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
10G support*
Ja

Data-uitwisseling

Switchingcapaciteit*
240 Gbit/s
Throughput
178,56 Mpps
MAC-adrestabel*
16000 entries
Latentie (1 Gbps)
2,78 µs
Latentie (10 Gbps)
0,73 µs
Jumbo Frames ondersteuning
Ja

Design

Rack-montage*
Ja
Vormfactor
2U
Kleur van het product
Zwart

Prestatie

Geluidsniveau
60 dB
Fanloos
Ja

Energie

Vermogenstoevoer inclusief*
Ja
Stroomverbruik (typisch)
912 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Type Power over Ethernet (PoE) ondersteunt
Active PoE
Aantal Power over Ethernet plus (PoE +)-poorten
40
Totaal Power over Ethernet (PoE)-budget
2880 W

Eisen aan de omgeving

Warmtedissipatie
3113,57 BTU/h

Gewicht en omvang

Breedte
440 mm
Diepte
86,4 mm
Hoogte
350 mm
Gewicht
10,3 kg

Verpakking

Meegeleverde kabels
LAN (RJ-45), USB Type-C
Rekrails
Ja
Gebruiksaanwijzing
Ja
Rekbevestigingspakket
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
