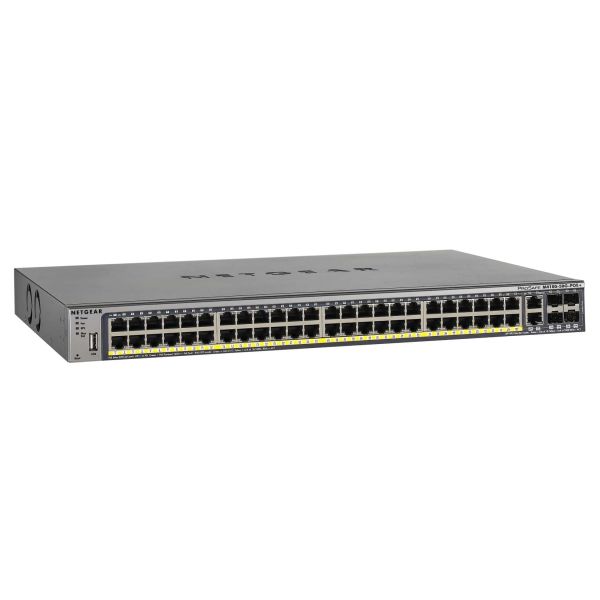

NETGEAR M4100-50G-POE+ Managed L2+/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grijs

NETGEAR M4100-50G-POE+, Managed, L2+/L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack-montage

Niet op voorraad

Fabrikant Netgear
MPN GSM7248P-100NES
EAN 0606449088038
€ 1.458,00 excl. BTW

NETGEAR M4100-50G-POE+ Managed L2+/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grijs

NETGEAR M4100 48xGb PoE+, 4x SFP switch,GSM7248P

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2+/L3
Quality of Service (QoS)
Ja
System event log
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
50
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF
4
Console port
RS-232
Aantal USB 2.0-poorten
1

Netwerk

Netwerkstandaard*
IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
Ja
Port mirroring
Ja
Datastroombeheer
Ja
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Rate limiting
Ja
Spanning tree protocol
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Voice VLAN
Aantal VLANs
1024

Data-uitwisseling

Switchingcapaciteit*
100 Gbit/s
MAC-adrestabel*
16000 entries
Latentie (10-100 Mbps)
10,194 µs
Latentie (1 Gbps)
3,91 µs
Jumbo Frames ondersteuning
Ja
Jumbo frames
9000

Beveiliging

DHCP-functies
DHCP server, DHCP client
Access Control List (ACL)
Ja
IGMP snooping
Ja
SSH/SSL support
Ja

Multicast-functies

Multicast-ondersteuning
Ja

Design

Rack-montage*
Ja
Stapelbaar*
Ja
Kleur van het product
Grijs
Veiligheid
CE, CSA, UL, CB, CCC

Prestatie

Intern geheugen
128 MB
Flash memory
32 MB
Geluidsniveau
47,7 dB
sFlow
Ja
Mean time between failures (MTBF)
239,298 uur

Energie

Stroomverbruik (typisch)
555,50 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
48
Totaal Power over Ethernet (PoE)-budget
380 W

Overige specificaties

Power LED
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-20 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 90 procent
Luchtvochtigheid bij opslag
0 - 95 procent
Hoogte, in bedrijf
0 - 3000 m
Hoogte bij opslag
0 - 3000 m
Warmtedissipatie
1,896 BTU/h

Gewicht en omvang

Breedte
440 mm
Diepte
310 mm
Hoogte
43,2 mm
Gewicht
4,96 kg

Inhoud van de verpakking

Gebruikershandleiding
Ja

Certificaten

Certificering
- CE mark, commercial - FCC Part 15 Class A, VCCI Class A - Class A EN 55022 (CISPR 22) Class A - Class A C-Tick - EN 50082-1 - EN 55024
