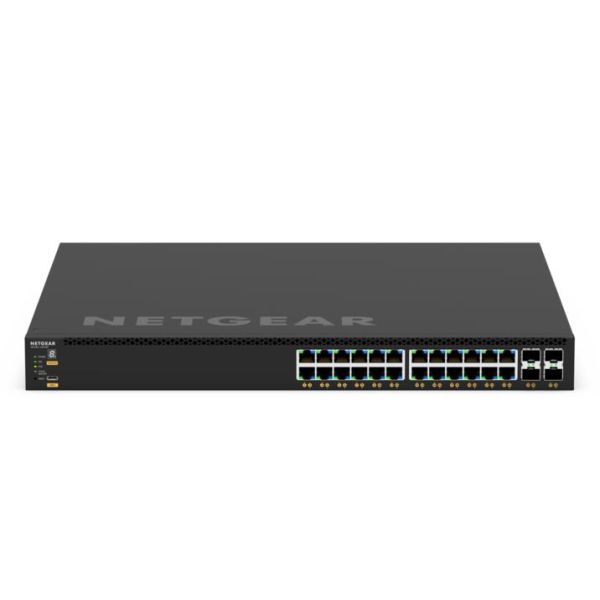

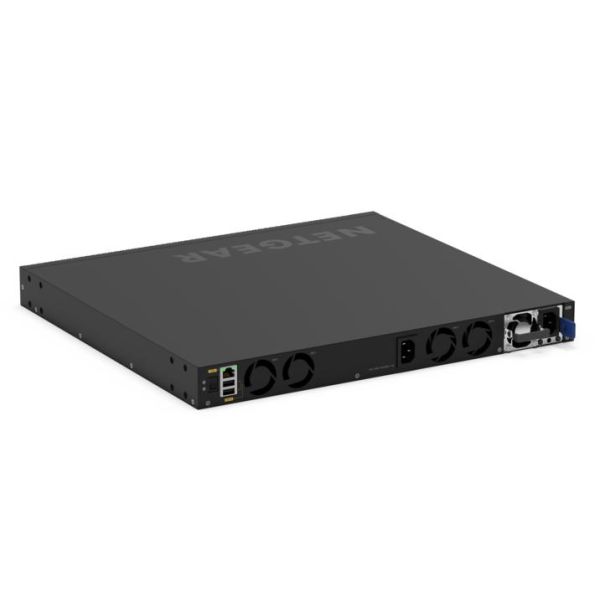

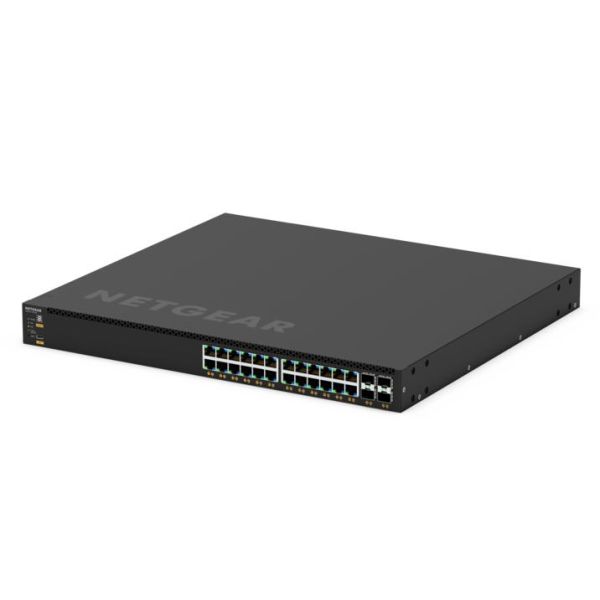

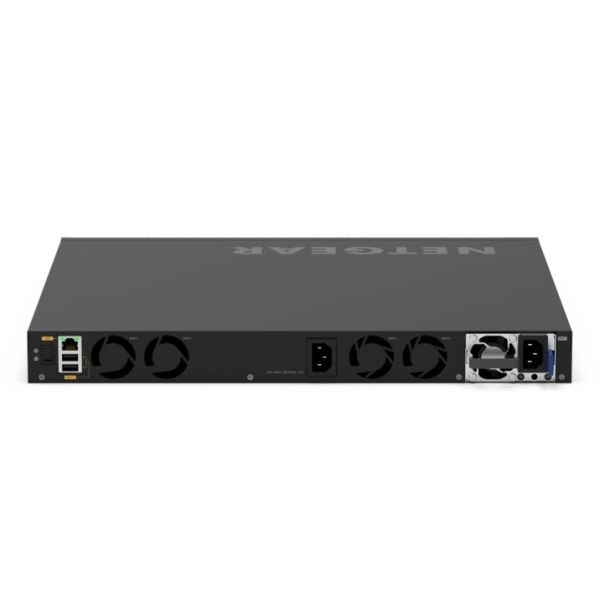

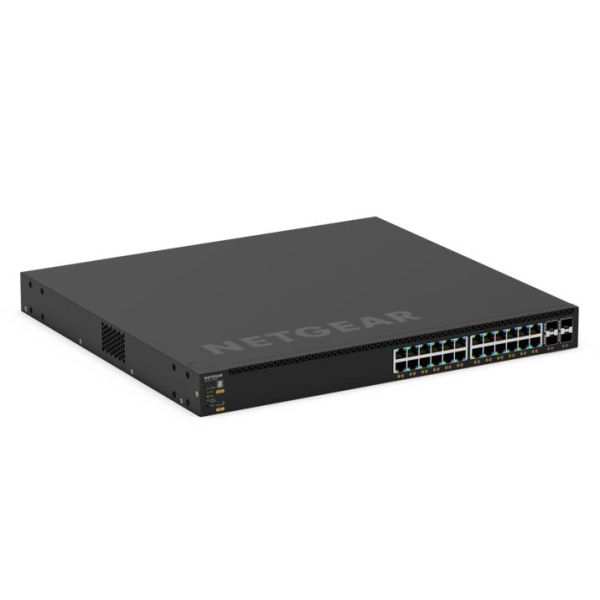

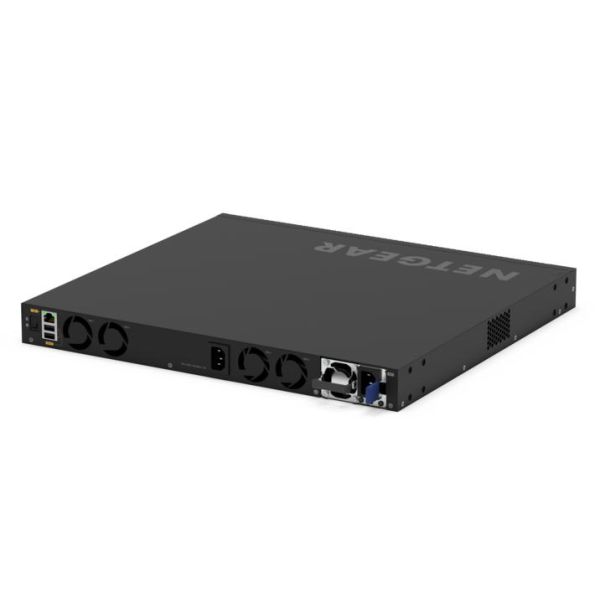

NETGEAR GSM4328-100AJS Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Zwart

NETGEAR GSM4328-100AJS, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack-montage, 1U

Ruim op voorraad

Fabrikant Netgear
MPN GSM4328-100NES
EAN 0606449161922
€ 3.057,00 excl. BTW

NETGEAR GSM4328-100AJS Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Zwart

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

FAST, EASY
CONFIGURATION
FOR AV PROS

A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT
NOT FAN NOISE

Most models have quiet mode which greatly reduces fan noise.

DESIGNED FOR
AV OVER IP
RIGHT OUT OF
THE BOX

With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
  • 24 Gigabit PoE+ ports with 4 10GBASE-X SFP+ uplinks
  • 880W internal power supply providing 648W of PoE budget
  • 1 slot for modular power supply (1+1 redundancy and/or EPS share)
  • Any APS350Wv1, APS600Wv2, APS920Wv1, or APS2000Wv1 can be used
  • The PoE budget can reach 720W, when the redundant PoE budget remains 648W
  • Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
  • Layer 3 feature set includes static, policy-based, and dynamic routing
  • NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations
  • NETGEAR ProSAFE® Limited Lifetime Hardware Warranty
  • Lifetime Next Business Day Hardware Replacement

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L3
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
Traffic shaping
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
24
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal geïnstalleerde SFP+ modules*
4

Netwerk

Netwerkstandaard*
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
10G support*
Ja
VLAN=ondersteuning
Ja
Aantal VLANs
4093

Data-uitwisseling

Switchingcapaciteit*
128 Gbit/s
Throughput
95,23 Mpps
MAC-adrestabel*
16000 entries
Packet buffergeheugen
16 MB

Beveiliging

DHCP-functies
DHCP server, DHCP snooping, DHCPv6 snooping

Design

Rack-montage*
Ja

Design

Stapelbaar*
Ja
Vormfactor
1U
Kleur van het product
Zwart

Prestatie

Geluidsniveau
52 dB

Energie

Stroombron*
AC
Vermogenstoevoer inclusief*
Ja

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
24
Vermogen per poort Power over Ethernet (PoE)
30 W
Totaal Power over Ethernet (PoE)-budget
648 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 45 °C
Temperatuur bij opslag
-20 - 70 °C

Gewicht en omvang

Breedte
440 mm
Diepte
400 mm
Hoogte
43,2 mm
Gewicht
6,41 kg
