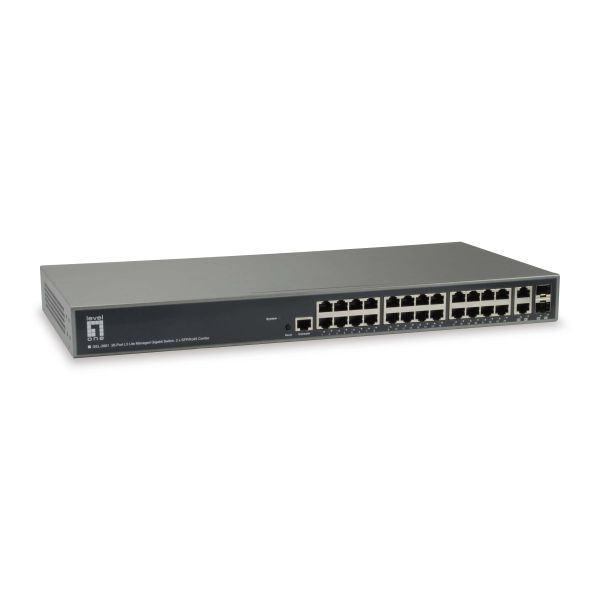

LevelOne GEL-2681, Managed, L3, Gigabit Ethernet (10/100/1000), Rack-montage

Ruim op voorraad

Fabrikant LevelOne
MPN GEL-2681
EAN 4015867198940

LevelOne GEL-2681 netwerk-switch Managed L3 Gigabit Ethernet (10/100/1000) Zwart

GEL-2681 L3 Lite Managed Gigabit Switch is a next-generation Ethernet Switch offering full suite of L2 features, including advanced L3 features such as Static Route that delivers better cost performance and lower total cost of ownership in Enterprise networks via fiber or copper connections.

GEL-2681 provides high HW performance and environment flexibility for SMBs/ Enterprises.

GEL-2681 is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership. The embedded Device Managed System is designed to be extremely easy-to-use/manage/install IP Phone, IP Cam, or Wifi-AP for Enterprise Applications.
  • 24 Gigabit ports and 2 Gigabit RJ45/SFP combo ports
  • QoS control for traffic prioritization and bandwidth management
  • DHCP Client/Server
  • Supports IPv4/IPv6 network operation
  • Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
  • IEEE 802.3ad LACP for auto port aggregation
  • Supports VLAN (Port-based, Protocol-based, Private, Q-in-Q, Tag-based) and GVRP
  • IEEE 802.1d/w/s Spanning Tree Protocol (STP) and port mirroring
  • IP Multicast Filtering through IGMP Snooping V1 / V2 / V3

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L3
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
System event log
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
24
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal Gigabit Ethernet (koper)-poorten
24
Aantal Combo SFP-poorten
2
Console port
RJ-45

Netwerk

Netwerkstandaard*
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
Nee
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring
Ja
Datastroombeheer
Ja
Broadcast stormbeheer
Ja
Spanning tree protocol
Ja
Kabellengtedetectie
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Private VLAN, Voice VLAN, Tagged VLAN, Port-based VLAN

Data-uitwisseling

Switchingcapaciteit*
52 Gbit/s
Verzending snelheid
38,68 Mpps
MAC-adrestabel*
8000 entries
Store-and-forward
Ja
Statische route
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
9600

Beveiliging

DHCP-functies
DHCP server, DHCP snooping, DHCP relay, DHCP client
Access Control List (ACL)
Ja
IGMP snooping
Ja
IGMP-proxy
Ja
Ondersteunde beveiligingsalgoritmen
802.1x RADIUS
SSH/SSL support
Ja
Bescherming lus
Ja
BPDU filtering / bescherming
Ja

Protocollen

Ondersteunde netwerkprotocollen
IPv4/IPv6
GARP VLAN Registratieprotocol (GVRP)
Ja

Design

Rack-montage*
Ja
Kleur van het product
Zwart
Reset button
Ja
LED-indicatoren
Activiteit, Link, Snelheid

Design

Land van herkomst
Taiwan
Veiligheid
LVD
Certificering
CE, FCC Part 15 Class A, VCCI, RoHS

Prestatie

Intern geheugen
128 MB
Flash memory
32 MB
Upgraden van firmware mogelijk
Ja
Buffergrootte
512 KB
Telnet
Ja
sFlow
Ja
Mean time between failures (MTBF)
463931 uur

Energie

AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroomverbruik (typisch)
16,79 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 45 °C
Temperatuur bij opslag
-20 - 75 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
10 - 90 procent
Warmtedissipatie
73,87 BTU/h

Gewicht en omvang

Breedte
442 mm
Diepte
211 mm
Hoogte
44 mm
Gewicht
2,6 kg

Verpakking

Meegeleverde kabels
AC, LAN (RJ-45)
Snelstartgids
Ja
Type verpakking
Doos
Rekbevestigingspakket
Ja
Ondersteunings-cd
Ja
Breedte verpakking
300 mm
Diepte verpakking
520 mm
Hoogte verpakking
90 mm
Gewicht verpakking
3 kg

Logistieke gegevens

(Buitenste) hoofdverpakking breedte
482 mm
(Buitenste) hoofdverpakking lengte
540 mm
(Buitenste) hoofdverpakking hoogte
324 mm
Code geharmoniseerd systeem (HS)
85176990
(Buitenste) hoofdverpakking brutogewicht
16,2 kg
Hoeveelheid per (buitenste) hoofdverpakking
5 stuk(s)
