LevelOne GTL-2891, Managed, L3, Gigabit Ethernet (10/100/1000), Full duplex, Rack-montage

Ruim op voorraad

Fabrikant LevelOne
MPN GTL-2891
EAN 4015867199015

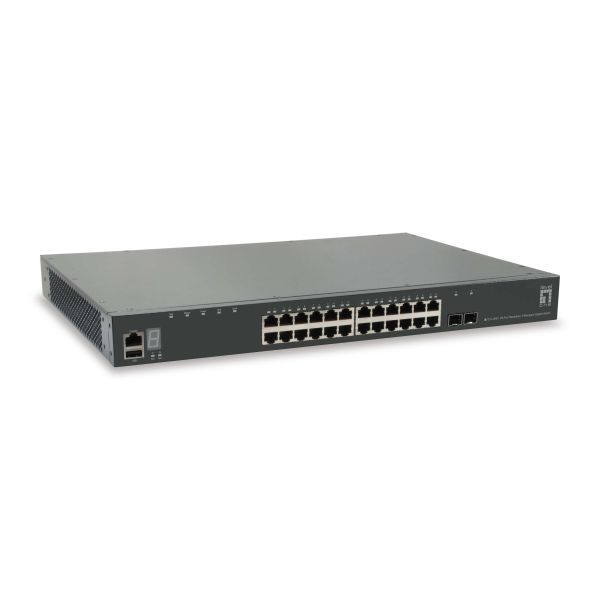

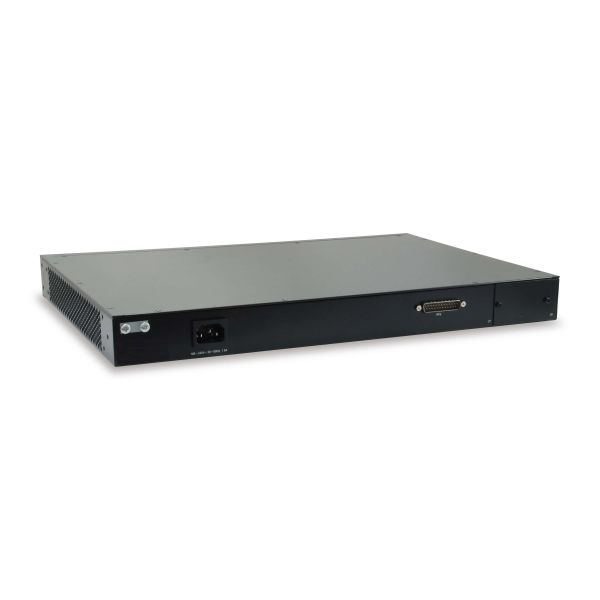

LevelOne GTL-2891 netwerk-switch Managed L3 Gigabit Ethernet (10/100/1000) Grijs

The GTL-2891 are a family of high-performance Gigabit Ethernet Layer 3 switches featuring 28 ports; with 24 10/100/1000BASE-T ports, 2 10G SFP+ ports, and one 10G dual port expansion slot. The switches are ideal for high-performance server aggregations, such as enterprise data centers, where they can connect high-end or network-attached files servers over fiber ports. They can also be deployed as a backbone upgrade, or to provide Gigabit–to-the-desktop for power users. These switches are packed with features and are a cost-effective solution that bring continuous availability, enhanced security, and advanced QoS to the network edge, while maintaining simplicity of management.
  • Dynamic ARP Inspection (DAI) protects switches against ARP spoofing
  • Supports up to 8 switches in one stack
  • Supports Operations, Administration, and Maintenance (OAM) mechanisms
  • Ethernet Ring Protection Switching (ERPS) for Ethernet ring topologies with sub-50 ms failover capabilities
  • IEEE 802.1d/w Spanning Tree Protocol (STP) and port mirroring
  • IEEE 802.3ad LACP for auto port aggregation
  • Supports port-based VLAN, IEEE 802.1Q VLAN Tagging
  • QoS control for traffic prioritization and bandwidth management

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L3
Quality of Service (QoS)
Ja
Traffic-classificatie
Ja
ARP-inspectie
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
24
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF+
2
Console port
RJ-45

Netwerk

Netwerkstandaard*
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
Ja
Full duplex
Ja
Verbindingsaggregatie
Ja
Spanning tree protocol
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Private VLAN, Voice VLAN, Protocol-based VLAN, MAC address-based VLAN, Port-based VLAN, IP subnet–based VLAN

Data-uitwisseling

Switchingcapaciteit*
128 Gbit/s
Verzending snelheid
95,23 Mpps
MAC-adrestabel*
16000 entries
Store-and-forward
Ja
Statische route
Ja
Packet buffergeheugen
1,5 MB

Beveiliging

DHCP-functies
DHCP snooping, DHCP relay
Access Control List (ACL)
Ja
IGMP snooping
Ja
Statische poort beveiliging
Ja
SSH/SSL support
Ja
BPDU filtering / bescherming
Ja
Authenticatie
MAC-gebaseerde authenticatie, Webgebaseerde authenticatie
DoS aanval preventie
Ja

Protocollen

Beheerprotocollen
CLI/WEB, Telnet/SNMP v1/v2/v3, RMON I,BOOTP/DHCP, SNTP, DNS,
Ondersteunde netwerkprotocollen
IPv4/IPv6
GARP VLAN Registratieprotocol (GVRP)
Ja

Design

Rack-montage*
Ja
Stapelbaar*
Ja
Kleur van het product
Grijs
LED-indicatoren
Ja
Land van herkomst
China
Veiligheid
UL 60950-1 & CSA 60950-1, CB IEC 60950-1 & EN 60950-1, UL/CUL

Design

Certificering
FCC, CE, VCCI Class A, WEEE, RoHS

Prestatie

Physical stacking (units)
8
Intern geheugen
256 MB
Flash memory
128 MB
Upgraden van firmware mogelijk
Ja
Telnet
Ja
sFlow
Ja
Mean time between failures (MTBF)
904213 uur

Energie

AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Output current
1,5 A
Stroomverbruik (typisch)
35 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 45 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
10 - 90 procent

Gewicht en omvang

Breedte
440 mm
Diepte
315 mm
Hoogte
44 mm
Gewicht
3,7 kg

Verpakking

Meegeleverde kabels
AC, LAN (RJ-45)
Snelstartgids
Ja
Type verpakking
Doos
Rekbevestigingspakket
Ja
Rubberen voetjes
Ja
Ondersteunings-cd
Ja
Breedte verpakking
590 mm
Diepte verpakking
390 mm
Hoogte verpakking
133 mm
Gewicht verpakking
5,3 kg

Logistieke gegevens

(Buitenste) hoofdverpakking breedte
590 mm
(Buitenste) hoofdverpakking lengte
390 mm
(Buitenste) hoofdverpakking hoogte
133 mm
Code geharmoniseerd systeem (HS)
85176990
(Buitenste) hoofdverpakking brutogewicht
5,3 kg
Hoeveelheid per (buitenste) hoofdverpakking
1 stuk(s)
