LevelOne GTL-2881 netwerk-switch Managed L3 Gigabit Ethernet (10/100/1000) Grijs

LevelOne GTL-2881, Managed, L3, Gigabit Ethernet (10/100/1000), Full duplex, Rack-montage

Nog 17 beschikbaar

Fabrikant LevelOne
MPN GTL-2881
EAN 4015867198988
€ 1.060,00 excl. BTW

LevelOne GTL-2881 netwerk-switch Managed L3 Gigabit Ethernet (10/100/1000) Grijs

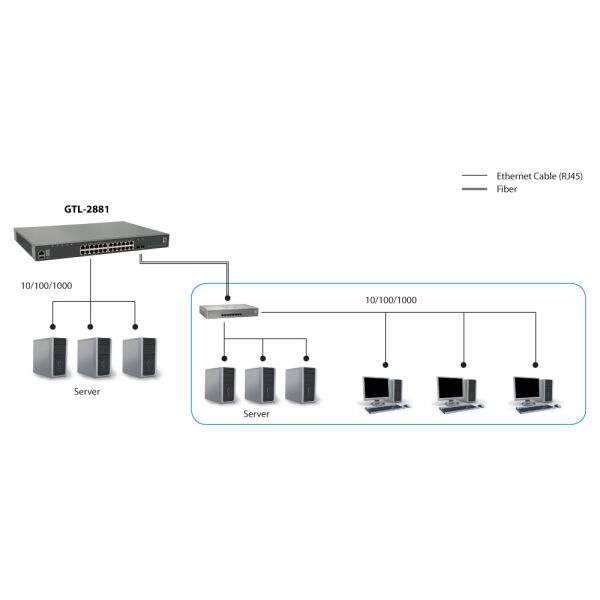

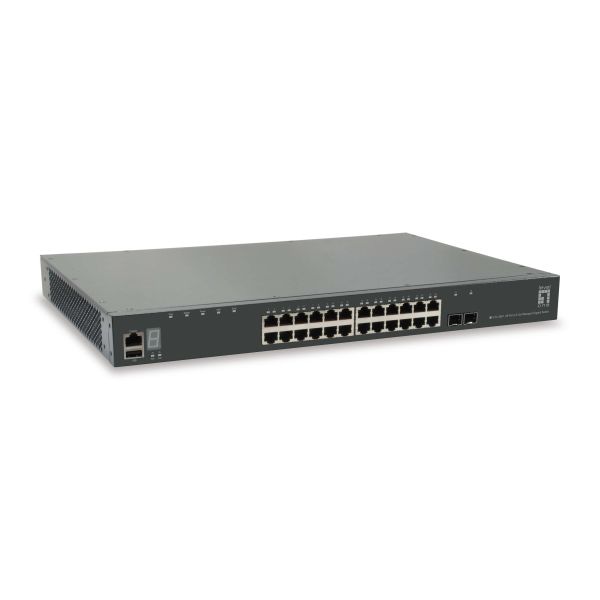

The GTL-2881 series includes high-performance Gigabit Ethernet Layer3 Lite switches featuring 28 ports; 24 10/100/1000BASE-T ports, two 10G SFP+ ports, and one 10G expansion slot for a dual-port module. The switch is ideal for high-performance server aggregations, such as enterprise data centers, where it can connect high-end or network-attached file servers through fiber ports. It can also deployed as a backbone upgrade, or to provide Gigabit-to-the-desktop for power users. This switch is packed with features and is a cost-effective solution that brings continuous availability, enhanced security, and advanced QoS to the network edge, while maintaining simplicity of management.
  • Dynamic ARP Inspection (DAI) protects switches against ARP spoofing
  • Supports up to 8 switches in one stack
  • Supports Operations, Administration, and Maintenance (OAM) mechanisms
  • Ethernet Ring Protection Switching (ERPS) for Ethernet ring topologies with sub-50 ms failover capabilities
  • IEEE 802.1d/w Spanning Tree Protocol (STP) and port mirroring
  • IEEE 802.3ad LACP for auto port aggregation
  • Supports port-based VLAN, IEEE 802.1Q VLAN Tagging
  • QoS control for traffic prioritization and bandwidth management

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L3
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
ARP-inspectie
Ja
System event log
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
24
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal Gigabit Ethernet (koper)-poorten
24
Aantal moduleslots SPF+
2
Vezel-optische connector
SFP+
Console port
RJ-45

Netwerk

Netwerkstandaard*
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
Ja
Port mirroring
Ja
Full duplex
Ja
Datastroombeheer
Ja
Verbindingsaggregatie
Ja
Spanning tree protocol
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Private VLAN, Voice VLAN, Tagged VLAN, Protocol-based VLAN, MAC address-based VLAN, Port-based VLAN, IP subnet–based VLAN
Aantal VLANs
4000

Data-uitwisseling

Switchingcapaciteit*
128 Gbit/s
Verzending snelheid
95,23 Mpps
MAC-adrestabel*
16000 entries
Store-and-forward
Ja
Statische route
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
10000
Packet buffergeheugen
1,5 MB

Beveiliging

DHCP-functies
DHCP snooping
Ondersteunde beveiligingsalgoritmen
HTTPS
Statische poort beveiliging
Ja
SSH/SSL support
Ja
DoS aanval preventie
Ja

Protocollen

Beheerprotocollen
BOOTP/DHCP, SNTP, DNS, LLDP, RMON I, SNMP v1/v2/v3,
GARP VLAN Registratieprotocol (GVRP)
Ja

Design

Rack-montage*
Ja
Stapelbaar*
Ja
Kleur van het product
Grijs
LED-indicatoren
Diagnostisch, Systeem, Uplink
Land van herkomst
China

Design

Veiligheid
CB, UL
Certificering
FCC Class A, CE, VCCI, WEEE, RoHS

Prestatie

Physical stacking (units)
8
Virtual stacking (units)
36
Type geheugen
DRAM
Intern geheugen
256 MB
Flash memory
128 MB
Upgraden van firmware mogelijk
Ja
Telnet
Ja
Mean time between failures (MTBF)
904213 uur

Energie

Vermogenstoevoer inclusief*
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroom
1.5 A
Stroomverbruik (typisch)
35 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 45 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
10 - 90 procent

Gewicht en omvang

Breedte
440 mm
Diepte
315 mm
Hoogte
44 mm
Gewicht
3,7 kg

Verpakking

Meegeleverde kabels
AC, LAN (RJ-45)
Snelstartgids
Ja
Type verpakking
Doos
Rekbevestigingspakket
Ja
Rubberen voetjes
Ja
Ondersteunings-cd
Ja
Breedte verpakking
590 mm
Diepte verpakking
390 mm
Hoogte verpakking
133 mm
Gewicht verpakking
5,3 kg

Logistieke gegevens

(Buitenste) hoofdverpakking breedte
590 mm
(Buitenste) hoofdverpakking lengte
390 mm
(Buitenste) hoofdverpakking hoogte
133 mm
Code geharmoniseerd systeem (HS)
85176990
(Buitenste) hoofdverpakking brutogewicht
5,3 kg
Hoeveelheid per (buitenste) hoofdverpakking
1 stuk(s)
