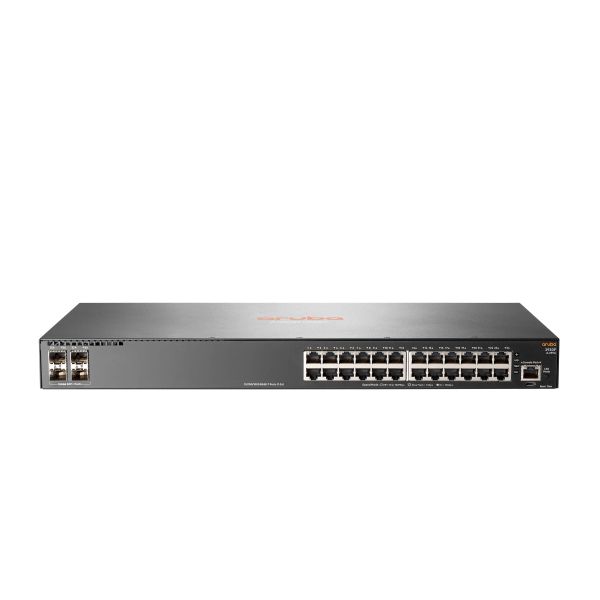

Aruba, a Hewlett Packard Enterprise company Aruba 2930F 24G 4SFP, Managed, L3, Gigabit Ethernet (10/100/1000), Full duplex, Rack-montage, 1U

Nog 14 beschikbaar

Fabrikant HP
MPN JL259A#ABB
EAN 0190017006017

Aruba, a Hewlett Packard Enterprise company Aruba 2930F 24G 4SFP Managed L3 Gigabit Ethernet (10/100/1000) 1U Grijs

The Aruba 2930F Switch Series is designed for customer creating digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These basic Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave and are ideal for enterprise edge, SMB and branch offices.

A powerful Aruba ProVision ASIC delivers performance and value supporting the latest SDN applications with future proof programmability. It supports 10GbE uplinks, PoE+, robust QoS, and RIP routing.

Features

High-Performance Access Layer Switches
- The Aruba 2930F Switch Series provides performance, security, and ease of use for enterprise edge, SMB, and branch office networks.
- Delivers a consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager and Airwave Network Management. Provides optimal configuration automatically when connected to Aruba access points for PoE priority, VLAN configuration, and rogue AP containment.
- Convenient built-in 1GbE or 10GbE uplinks and PoE+ models deliver right-size network access performance.
- Robust basic Layer 3 feature set includes static and RIP routing, ACLs, sFlow, IPv6 with no software licensing required.
- Designed with a powerful ProVision ASIC and support for OpenFlow, the Aruba 2930F is ready to take advantage of SDN applications such as HPE Network Visualizer, Optimizer, and Protector Software products.

Performance and Power at the Edge
- The Aruba 2930F Switch Series is designed with a powerful Aruba ProVision ASIC, to enable the mobile campus with SDN optimizations, low latency, increased packet buffering, and adaptive power consumption.
- Increase performance with selectable queue configurations and associated memory buffering that meets your specific network application requirements.
- Supports up to 370 W of internal PoE+ power for wireless access points, cameras and phones.

Security and Quality of Service You Can Rely on
- The Aruba 2930F Switch Series includes security and quality of services features to build a network that meets ever-changing corporate policies and compliances while protecting your data from both inside and outside attacks.
- Flexible authentication options include standards based security protocols such as 802.1X, MAC and Web Authentication, to enhance security and policy-driven application authentication.
- Powerful, multilevel-access security controls include source-port filtering, RADIUS/TACACS+, SSL, Port Security, and MAC address lockout.

Simplify with Integrated Wired/Wireless Management
- The Aruba 2930F Switch Series supports Aruba ClearPass Policy Manager for unified and consistent policy between wired and wireless users and simplifies implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.
- Supports Aruba Airwave Network Management software to provide common platform for Zero Touch Provisioning management, and monitoring for wired and wireless network devices.
- RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.
- Out-of-band Ethernet management port keeps management traffic segmented from your network data traffic.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L3
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
Traffic-classificatie
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
24
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF
4
Console port
RJ-45

Netwerk

Netwerkstandaard*
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
10G support*
Nee
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX, 1000BASE-T
Full duplex
Ja
IP routing
Ja
Routing entries
10000
Datastroombeheer
Ja
Verbindingsaggregatie
Ja
Rate limiting
Ja
Auto MDI/MDI-X
Ja
Spanning tree protocol
Ja
Auto-sensing
Ja
VLAN=ondersteuning
Ja

Data-uitwisseling

Switchingcapaciteit*
56 Gbit/s
Throughput
41,7 Mpps
MAC-adrestabel*
32768 entries
Latentie (1 Gbps)
3,8 µs
Jumbo Frames ondersteuning
Ja

Beveiliging

DHCP-functies
DHCP server
Access Control List (ACL)
Ja
IGMP snooping
Ja

Beveiliging

SSH/SSL support
Ja

Multicast-functies

Multicast-ondersteuning
Ja

Design

Rack-montage*
Ja
Stapelbaar*
Ja
Vormfactor
1U
Kleur van het product
Grijs

Prestatie

Type processor
Ja
Frequentie van processor
1016 MHz
Type geheugen
DDR3-SDRAM
Intern geheugen
1024 MB

Energie

AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroomverbruik (typisch)
19,5 W
Vermogensverbruik (max)
29,3 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 45 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
15 - 95 procent
Warmtedissipatie
100 BTU/h

Gewicht en omvang

Breedte
442,5 mm
Diepte
200,2 mm
Hoogte
43,9 mm
Gewicht
2,41 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
